AINEWELL quickly responds to market demands and has developed front-entry push-in PCB terminals. The wiring direction and operation direction are on the same side, allowing the connector to be integrated into the front of the device and saving device space. At the same time, the product integrates test holes on the front, enabling customers to easily and safely perform electrical tests.
Products feature

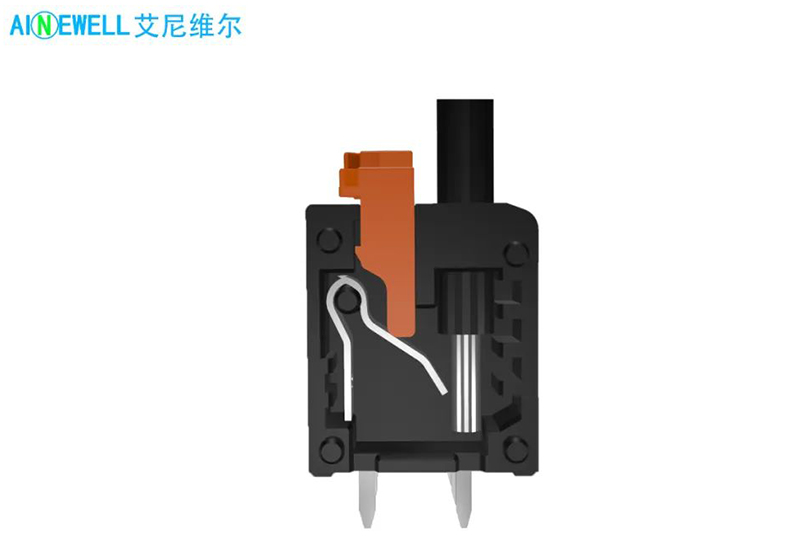

Push-in terminals enable efficient wiring, helping customers save on labor costs.

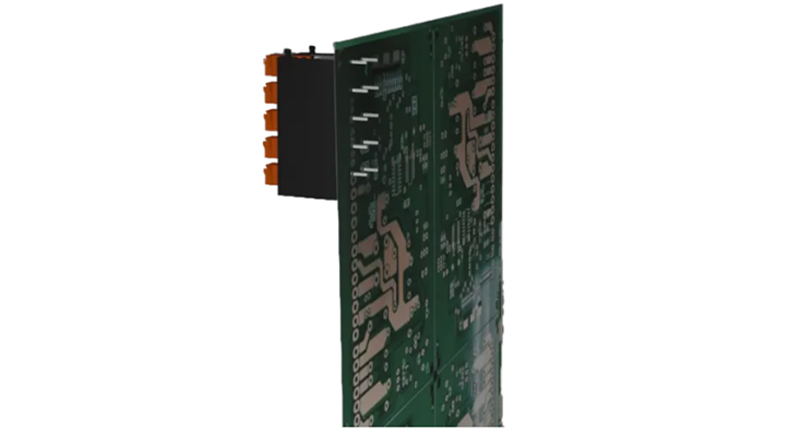

Dual-row solder pins securely connect to the PCB board, providing excellent anti-vibration performance.
Product Parameters

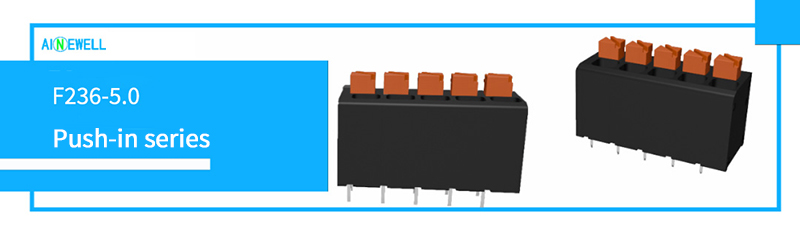

| Model | F236-5.0 |
| Pitch | 5.0mm |
| IEC Voltage | 320V |
| IEC Current | 17.5A |
| IEC Wire diameter | 0.2-1.5mm2 |
| UL Voltage | 300V |
| UL Current | 10A |
| UL Wire diameter | 24-16AWG |
