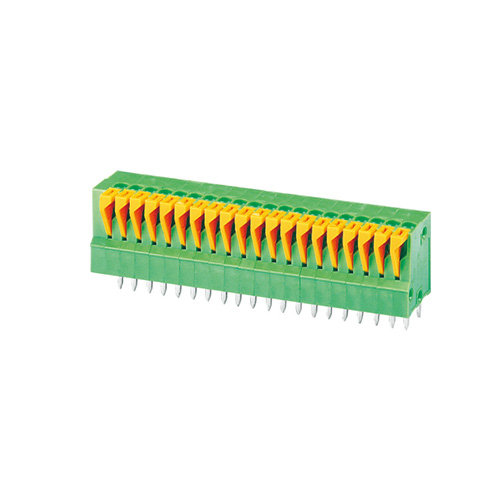

? Pitch：2.54mm，Electrical：UL，Rated Voltage：150V，Rated Current：8A，colour：green ;
? Most spring PCB terminal blocks are assembled piece by piece ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。
→ Pitch：2.54mm
→ Electrical：UL
→ Rated Voltage：150V
→ Rated Current：8A
→ Wire Diameter Range（AWG/mm2）：24-18/1.0
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC1250V/1min
→ Strip Length：11mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Brass，Tin-plated |
| Fastening piece Screw/Spring | - |
| Fastening piece Cage/Nut | Stainless Steel |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 150V | 130V |
| Rated Current | 8A | 6A |
| Withstand Voltage | AC1250V/1min | |
| Impulse Withstand Voltage | ||
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 24~18/1.0 |
| Strip Length | 11mm |
| Torque | - |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
