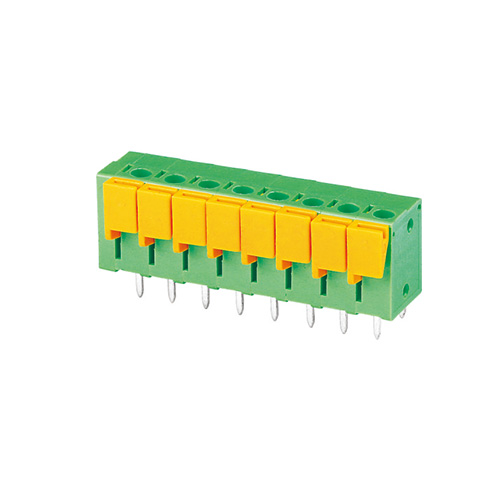

Spring terminal blocks F142V-7.5
Spring terminal blocks F142V-7.5

? Pitch:7.5mm,Electrical:UL,Rated Voltage:300V,Rated Current:10A,colour:green ;

? Most spring PCB terminal blocks are assembled piece by piece ;

? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:7.5mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:10A

 Wire Diameter Range(AWG/mm2):24-14/0.2-1.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC2000V/1min

 Strip Length:10mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorBrass,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/NutStainless Steel
Electric Characteristics                ULIEC
Rated Voltage300V250V
Rated Current10A15A
Withstand VoltageAC2000V/1min
Impulse Withstand Voltage4KV
Connection Characteristics
Wire Diameter Range(AWG/mm2)24~14/0.2~1.5
Strip Length10mm
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
