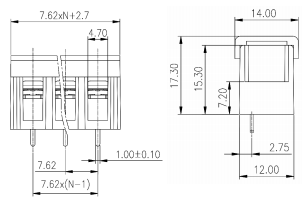

American & Japanese terminal blocks F-25S...-C-7.62

? Pitch：7.62mm，Electrical：UL，Rated Voltage：300V，Rated Current：15A，colour：black ;

? In order to meet the requirements of different application,With and without plastic cover are optional ;

? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

→ Pitch：7.62mm

→ Electrical：UL

→ Rated Voltage：300V

→ Rated Current：15A

→ Wire Diameter Range（AWG/mm2）：22~14/0.2~2.5

→ Operating Temperature Range：-40℃~+105℃

→ Withstand Voltage: AC1600V/1min

→ Strip Length：7-8mm

Datasheet

Material and Finish
Hosuing	PA66 UL94V-0
Electric conductor	Brass,Tin-plated
Fastening piece Screw/Spring	Steel，Nickel-plated
Fastening piece Cage/Nut	-

Connection Characteristics
Wire Diameter Range（AWG/mm2)	22~14/0.2-2.5
Strip Length	7-8mm
Torque	M3,0.5N.m
Operating Temperature Range	-40℃~+105℃

Order Number
Package Unit
MOQ
Product Weight (Excluding Package)

Matching products
