? Pitch：9.5mm，Electrical：UL，Rated Voltage：300V，Rated Current：25A，colour：black ;
? In order to meet the requirements of different application,With and without plastic cover are optional ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

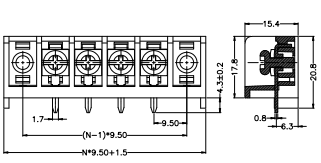

→ Pitch：9.5mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：25A
→ Wire Diameter Range（AWG/mm2）：22~12/0.5~4.0
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC2000V/1min
→ Strip Length：8-9mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Brass,Tin-plated |
| Fastening piece Screw/Spring | Steel，Nickel-plated |
| Fastening piece Cage/Nut | - |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 750V |
| Rated Current | 25A | 32A |
| Withstand Voltage | AC2000V/1min | |
| Impulse Withstand Voltage | 6KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 22~12/0.5~4.0 |
| Strip Length | 8-9mm |
| Torque | M4.0,1.2N.m |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
