? Pitch：36.0mm，Electrical：UL，Rated Voltage：600V，Rated Current：200A，colour：black ;
? In order to meet the requirements of different application,With and without plastic cover are optional ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

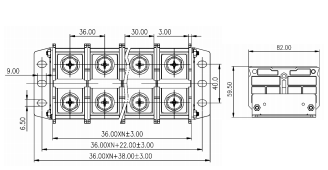

→ Pitch：36.0mm
→ Electrical：UL
→ Rated Voltage：600V
→ Rated Current：200A
→ Wire Diameter Range（AWG/mm2）：20-4/2.5-95
→ Operating Temperature Range：-40℃~+105℃
<span style="text-wrap: wr
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Brass,Tin-plated |
| Fastening piece Screw/Spring | Steel，Nickel-plated |
| Fastening piece Cage/Nut | - |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 600V | 1000V |
| Rated Current | 200A | 200A |
| Withstand Voltage | AC2000V/1min | |
| Impulse Withstand Voltage | 8KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 20~4/0/2.5~95 |
| Strip Length | - |
| Torque | 9.0N.m |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
