? Pitch：7.0mm，Electrical：UL，Rated Voltage：300V，Rated Current：15A，colour：grey ;
? In order to meet the requirements of different application,With and without plastic cover are optional ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL。

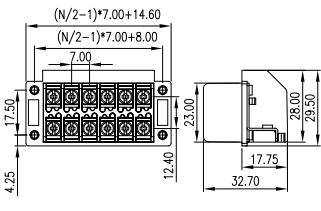

→ Pitch：7.0mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：15A
→ Wire Diameter Range（AWG/mm2）：22-14/0.75-2.5
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC1600V/1min
→ Strip Length：5-7mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 UL94V-0 |
| Electric conductor | Copper Alloy,Tin-plated |
| Fastening piece Screw/Spring | Steel，Zinc-plated |
| Fastening piece Cage/Nut | Steel，Zinc-plated |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 400V |
| Rated Current | 15A | 15A |
| Withstand Voltage | AC1600V/1Min | |
| Impulse Withstand Voltage | 4KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 22~14/0.75~2.5 |
| Strip Length | 5-7mm |
| Torque | M3,0.5N.m |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
