? Pitch：3.81mm，Electrical：UL，Rated Voltage：300V，Rated Current：10A，colour：green ;
? combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

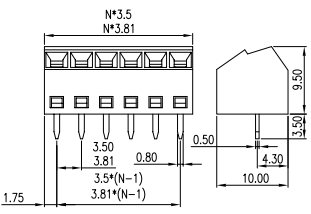

→ Pitch：3.81mm
→ Electrical：UL
→ Rated Voltage：300V
→ Rated Current：10A
→ Wire Diameter Range（AWG/mm2）：24~16/0.2~1.5
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC1500V/1min
→ Strip Length：4-5mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 ，UL94V-0 |
| Electric conductor | Brass, Tin-plated |
| Fastening piece Screw/Spring | Brass,Nickel-plated |
| Fastening piece Cage/Nut | M2.0,Steel,Zinc-plated |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 300V | 130V |
| Rated Current | 10A | 10A |
| Withstand Voltage | AC1500V/1min | |
| Impulse Withstand Voltage | 2.5KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 24~16/0.2~1.5 |
| Strip Length | 4~5mm |
| Torque | 0.2N.m1.7Lbin |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
