? Pitch：15.0mm，Electrical：UL，Rated Voltage：600V，Rated Current：115A，colour：green ;
? combined with single-layer, double-layer and three-layer designs, to diversify the selectivity of applications ;
? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。

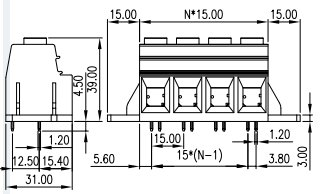

→ Pitch：15.0mm
→ Electrical：UL
→ Rated Voltage：600V
→ Rated Current：115A
→ Wire Diameter Range（AWG/mm2）：20~2/0.5~35
→ Operating Temperature Range：-40℃~+105℃
→ Withstand Voltage: AC3500V/1min
→ Strip Length：18mm
| Datasheet | |
|---|---|
 |
| Material and Finish | |
|---|---|
| Hosuing | PA66 ，UL94V-0 |
| Electric conductor | Copper Alloy, Tin-plated |
| Fastening piece Screw/Spring | Steel，Zinc-plated |
| Fastening piece Cage/Nut | Copper Alloy,，Zinc-plated |
| Electric Characteristics | UL | IEC |
|---|---|---|
| Rated Voltage | 600V | 1000V |
| Rated Current | 115A | 125A |
| Withstand Voltage | AC3500V/1min | |
| Impulse Withstand Voltage | 8KV | |
| Connection Characteristics | |
|---|---|
| Wire Diameter Range（AWG/mm2) | 20~2/0.5~35 |
| Strip Length | 18mm |
| Torque | M5,2.5N.m |
| Operating Temperature Range | -40℃~+105℃ |
| Order Number | |
| Package Unit | |
| MOQ | |
Product Weight (Excluding Package) |
