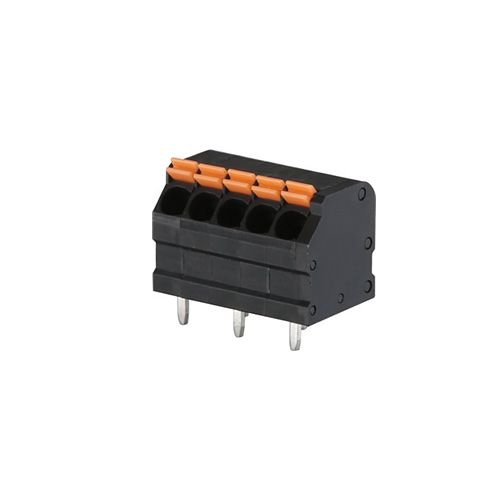

Spring terminal blocks F550A-3.5
Spring terminal blocks F550A-3.5

? Pitch:3.5mm,Electrical:UL,Rated Voltage:300V,Rated Current:9A,colour:black ;

? Most spring PCB terminal blocks are assembled piece by piece ;

? The products are designed according to IEC60998 and UL1059 international standard and also certified by UL and TUV。


 Pitch:3.5mm

 Electrical:UL

 Rated Voltage:300V

 Rated Current:9A

 Wire Diameter Range(AWG/mm2):26-16/0.2-1.5

 Operating Temperature Range:-40℃~+105℃

 Withstand Voltage:  AC1600V/1min

 Strip Length:9-10mm


Datasheet
Material and Finish
HosuingPA66 UL94V-0
Electric conductorRed Copper,Tin-plated
Fastening piece Screw/Spring-
Fastening piece Cage/NutStainless Steel
Electric Characteristics                ULIEC
Rated Voltage300V160V
Rated Current9A14A
Withstand VoltageAC1600V/1min
Impulse Withstand Voltage2.5KV
Connection Characteristics
Wire Diameter Range(AWG/mm2)26~16/0.2~1.5
Strip Length9-10mm
Torque-
Operating Temperature Range-40℃~+105℃

Order Number
Package Unit
MOQ

Product Weight

(Excluding Package)
